HydraPure CTO Series Carbon Block Filter Cartridges are
made of an activated carbon block which is manufactured
according to strictly extruded & controlled engineering
processes. The high-quality activated carbon guarantees
excellent durability, minimal pressure loss and high flow rate.
Carbon block filter cartridges are highly effective in removing
odor, bad taste, chlorine spores and microorganisms in water.
It provides an economical solution for a wide range of residential,
commercial and industrial water filtration processes.
Features
- · High chlorine taste & odor and bad taste & odor reduction
- · Extensive chemical compatibility with extended service life
- · Enhanced dirt holding capacity, low pressure drop and highflow rate
Applications
- · Drinking water
- · Waste water treatment
- · Plating process
- · Pre RO filtration
Specifications
| Filter Media: | Activated carbon |
| Cage/End Cap: | Polypropylene |
| Netting: | Polyethylene |
| Gasket: | EPDM |
| Outside Diameter: | 2.5’’(70mm),4.5’’(115mm) |
| Inside Diameter: | 1.1’’(28mm) |
| Length: | 10’’,20’’,30’’,40’’ |
| Max. Operating Temperature: | 84-38℃(40-100°F) |
| Max. Operating Pressure Drop: | 2.4 bar(35psi) @ 38℃ (100°F) |

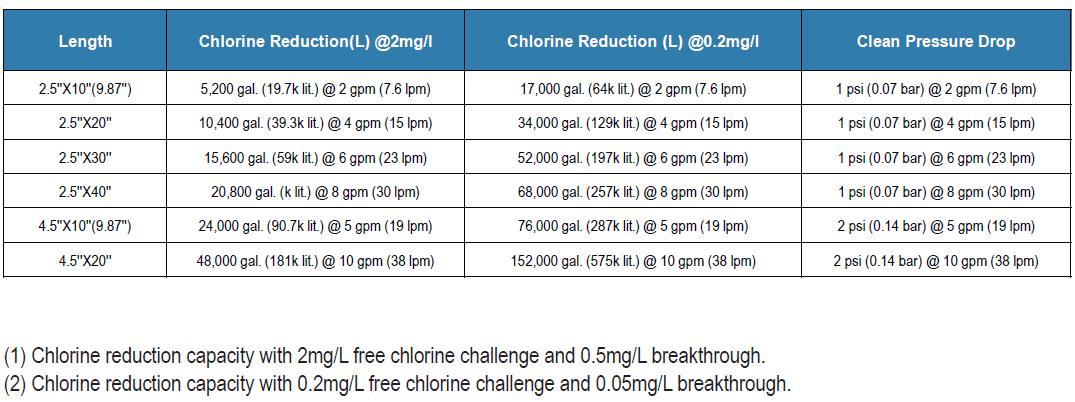

Performance Data

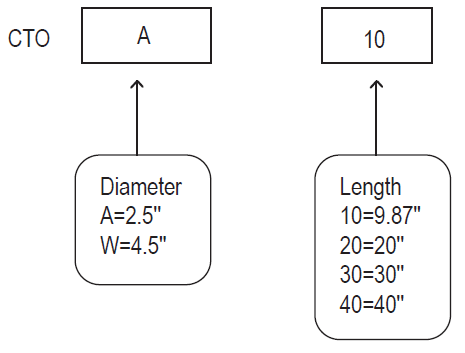

Ordering Information
