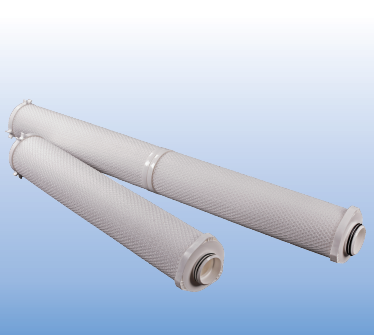

HF5-Series High Flow Filter Cartridge

HF5-Series High Flow Filter Cartridge

HydraPure HF5-Series high flow pleated depth media
cartridges provide efficient micron retention of particulate in
high-purity fluid filtration applications. They offer fine flow
permeability and a high contaminant capacity with superior
chemical resistance. They can be used for a variety of
applications that require a high flow rate. Compatible fit with
Pentair® Aqualine High-Flow series.

  • · Manufactured with FDA certified polypropylene
  • · High dirt holding capacity, longer service life
  • · Fewer cartridges for fewer change-outs, thus less labor cost
  • · O-ring design causes no bypass to ensure the filtration efficiency
  • · Easy handling results in less manpower
  • · Wide chemical compatibility for different applications

  • · Prefiltration of RO
  • · Sea water desalination
  • · Condensate water filtration
  • · Machinery&Equipment
  • · Food and beverage
  • · Power plant water treatment
  • · Chemical
  • · Mining

Filter Media:PP
Cage/End Cap:PP
Seal Material:EPDM, Silicone, NBR, FKM
Outside Diameter:6’’(154mm)
Length:40’’, 60’’
Max. Operating Temperature:80℃ (176°F)
Max. Operating Pressure Drop:2.4 bar(35psi) @ 20℃(68° F)
