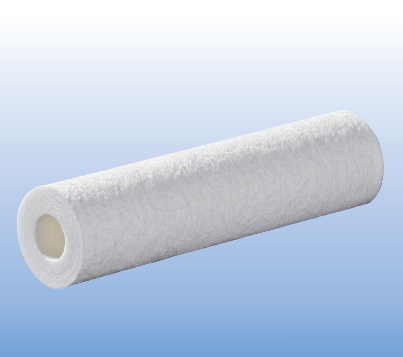

HydraPure PP Melt Blown filter cartridges are manufactured
from 100% pure polypropylene fibers and designed with
multi-grade depth filtration structure for trapping various
sized particles layer-by-layer. It provides a much lower
pressure drop and much higher dirt holding capacity, they are
an economical solution for pre-filtration in many different
applications.
Features
- · Manufactured with NSF certified polypropylene
- · HDesigned for purity and chemical compatibility

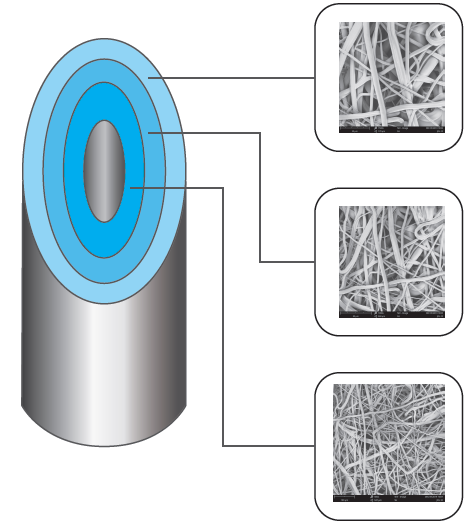

- · Three separate gradient density layers enhance cartridge performance
- · No wetting agents, solvents, surfactants, binders, adhesives
Applications
- · Potable water Filtration
- · Industrial water treatment
- · Chemicals and solvents
- · Food and beverage
- · Microelectronics
- · Pharmaceuticals
Specifications
| Filter Media: | 100% polypropylene |
| Outside Diameter: | 2.5’’(63mm),4.5’’(115mm) |
| Inside Diameter: | 1.1’’(28mm) |
| Length: | 10’’,20’’,30’’,40’’ |
| Max. Operating Temperature: | 65℃（149℃） |
| Max. Operating Pressure Drop: | 22 bar(29psi) @ 20℃(68° F) |

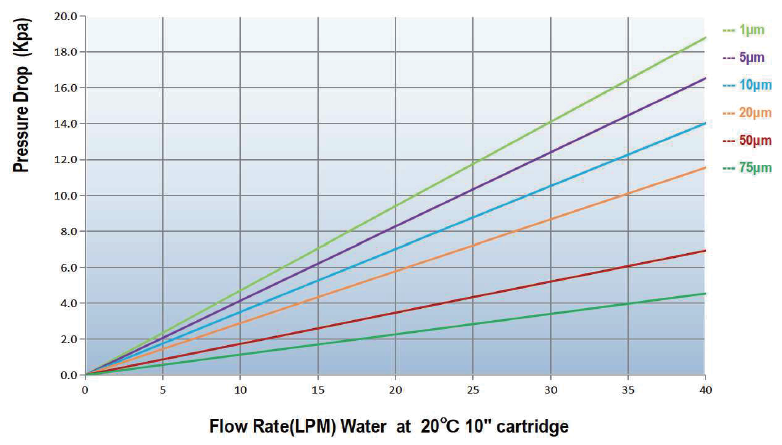

Performance Data

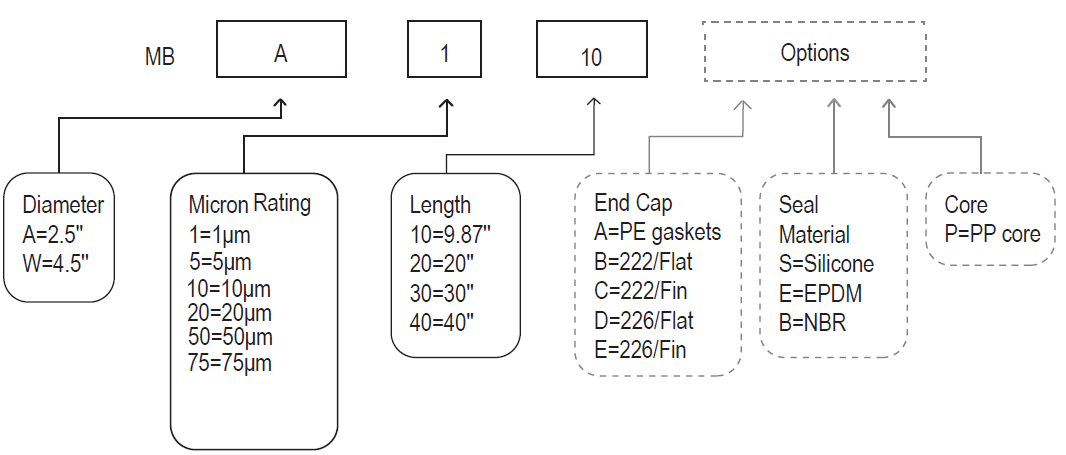

Ordering Information
