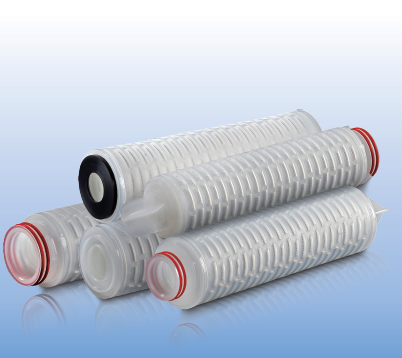

HydraPure PP Pleated filter cartridges are made of 100%
Polypropylene media. It provides excellent filtration efficiency
and chemical compatibility across a wide range of liquid
filtration process. Its large surface area allows a greater flow
rate and higher dirt holding capacity than depth filters. PP
pleated filter cartridges are widely used in a variety of
prefiltration process requiring high purity.
Features
- · Manufactured in a clean room
- · Excellent chemical compatibility
- · Low pressure drop, high capacity of impurities and long service life
- · Thermally bonded construction, eliminating particle bypass
Applications
- · Industrial water treatment
- · Paints and Coatings
- · Chemicals and solvents
- · Food and beverage
- · Microelectronics
- · Pharmaceuticals
Specifications
| Filter Media: | PP |
| Support Layer: | PP |
| Cage/Core/End Cap: | PP |
| Seal Material: | EPDM,Silicone,NBR,Viton,E-FKM |
| Outside Diameter: | 2.75’’(69mm) |
| Length: | 5’’,10’’,20’’,30’’,40’’ |
| Max. Operating Temperature: | 80℃ (176°F) |
| Max. Operating Pressure Drop: | 2 bar(29psi) @ 80℃(176° F) 4 bar(58psi) @ 20℃(68° F) |

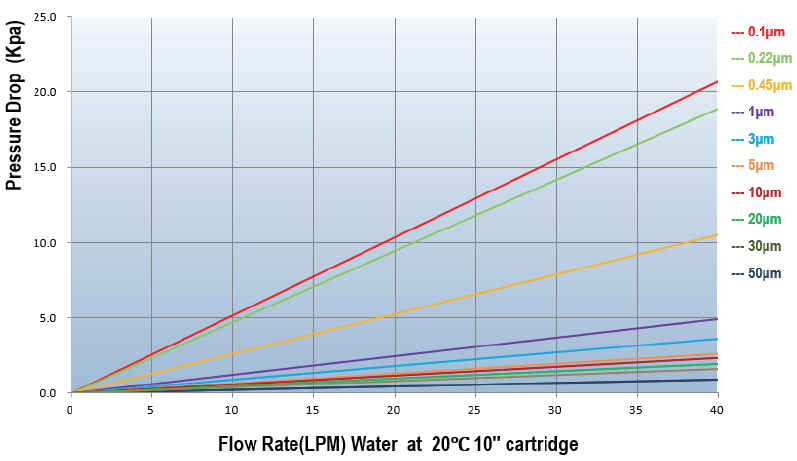

Performance Data

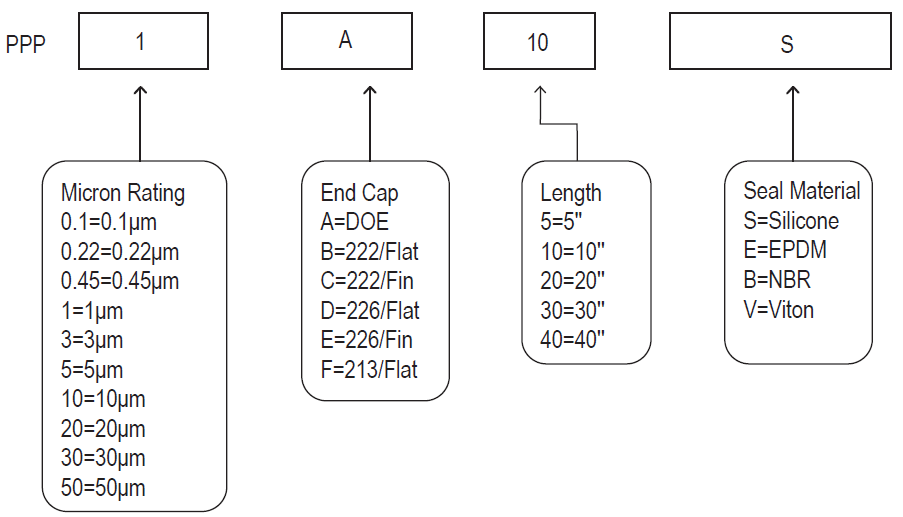

Ordering Information
