HydraPure String Wound filter cartridge is a type of depth
filter cartridge that is made by weaving yarn(PP, cotton, glass
fiber) around a core usually of polypropylene or stainless steel
, it provides excellent lifetime and efficiency, which is a
cost effective solution for the reduction of sand, silt, rust, dirt and
scale particles.Suitable for a variety of sediment filtration
applications, including residential and commercial applications.
Features
- · Continuously wound pattern
- · Wide chemical compatibility and long service life
- · Multi-layer gradient with exceptional dirt-holding capacity and higher efficiency
- · Reduce filtration system cost with high performance
Applications
- · Water treatment
- · Chemicals and solvents
- · Food and beverage
- · Pharmaceuticals
- · Oil and Gas
Specifications
| Filter Media: | PP, Glass Fiber, Cotton |
| Core: | PP, Stainless Steel |
| Outside Diameter: | 2.5’’(63mm),4.5’’(115mm) |
| Inside Diameter: | 1.1’’(28mm) |
| Length: | 10’’,20’’,30’’,40’’,50’’,60’’,70’’ |
| Max. Operating Temperature: | PP: 80℃(176°F) Cotton: 120℃ (248°F) Glass Fiber: 200℃(392°F) |
| Max. Operating Pressure Drop: | 2 .0bar(29psi) @ 25℃(77° F) |

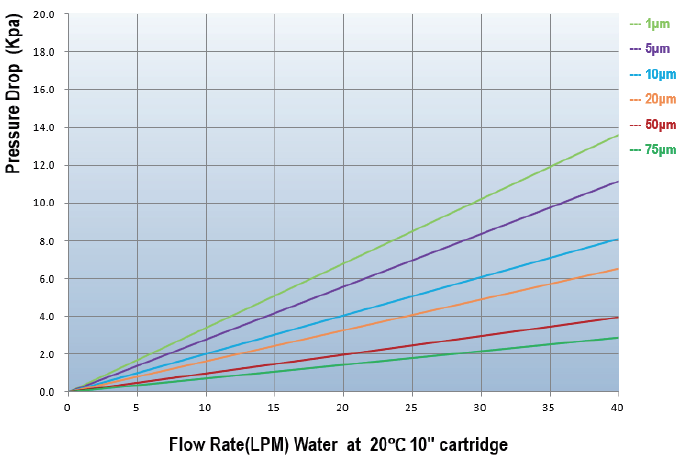

Performance Data

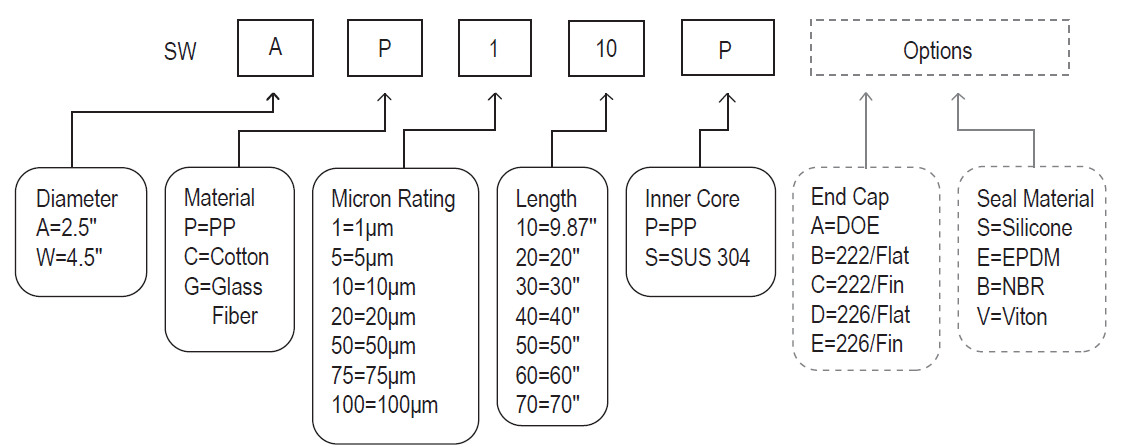

Ordering Information
